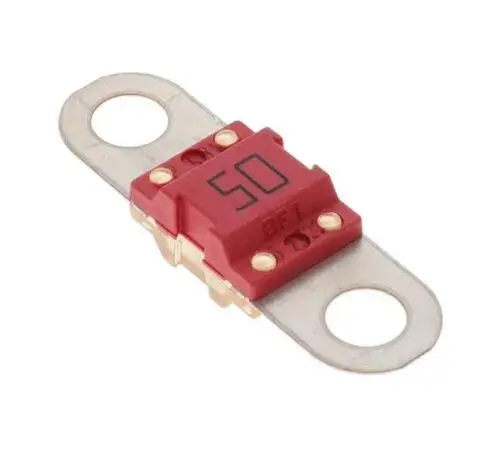

Victron Energy MIDI-Fuse 50A/58V-M6 (Single) CIP134050020

Compact, high-quality fuse designed to safeguard DC electrical systems from overcurrent damage. Built to Victron’s stringent safety and performance standards, this fuse is ideal for protecting batteries, inverters, charge controllers, and other critical components in 12V, 24V, and 48V systems.

£ 2.30 2.3000000000000003 GBP £ 2.30 VAT Included

£ 1.92 VAT Included

This combination does not exist.

Add to cart

Found it cheaper? We offer a Nationwide Price Promise on all products.

Terms and Conditions

Internal Reference: 119889

Rated at 50 amps and suitable for systems up to 58V DC, the MIDI-fuse features M6 bolt-down terminals for secure, low-resistance connections. With a cold resistance of just 1 mΩ and a typical voltage drop of 65mV, it ensures minimal energy loss while providing quick, effective overcurrent protection. Commonly used in marine, automotive, RV, and off-grid installations, this fuse is an essential part of any Victron-powered setup.

IMPORTANT NOTICE:

Please note that the images of the product shown above are for illustrative purposes only.

While we strive to provide accurate representations, there might be slight differences between the product image and the actual product you receive. These variations could be due to lighting, individual screen settings, product enhancements, or minor design updates from the manufacturer.

We assure you that any discrepancies are minimal and will not affect the overall quality and functionality of the product.

If you have any questions or concerns, please feel free to contact our customer support team for further assistance at support@batsol.co.uk or phone us at 01752 656270.

At Batteries and Solar, your satisfaction is our top priority, and we are committed to providing the best shopping experience for you.

Thank you for choosing Batteries and Solar for your purchase.

50A rated current, suitable for 12V, 24V, and 48V DC systems (up to 58V)
M6 bolt-down terminals for secure installation with MIDI-fuse holders
Cold resistance: only 1 milliohm for efficient power flow
Voltage drop: approximately 65mV under full load
Designed for use in Victron Energy systems, but compatible with other DC setups
Ideal for protecting batteries, inverters, charge controllers, and DC wiring
Compact MIDI format saves space in fuse blocks and distribution panels

Specification	Details
Product Name	Victron MIDI-Fuse 50A/58V-M6 (Single)
Product Code	CIP134050020
Rated Current	50 Amps
Maximum Voltage	58 Volts DC
Terminal Size	M6 (6 mm bolt)
Cold Resistance	1 mΩ (milliohm)
Voltage Drop	Approx. 65mV at full load
Fuse Type	MIDI / Bolt-on
Application	DC system protection – batteries, inverters, etc.
Format	Single fuse (not a pack)
