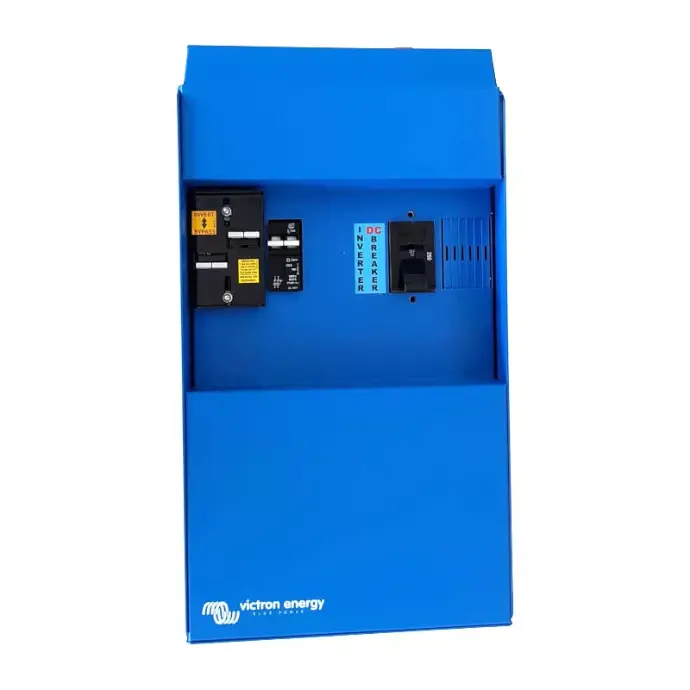

Victron Energy VE Panel 3kVA 120/240 NA Primary 24/48Vdc VEP230121402

https://www.batteriesandsolar.co.uk/web/image/product.template/275631/image_1920?unique=89b57bb

Upgrade your power system today with the Victron VE Panel—ensuring safe, efficient, and compliant installation for your inverter/charger setup!

£ 864.96 864.96 GBP £ 864.96 VAT Included

£ 720.80 VAT Included

This combination does not exist.

Found it cheaper? We offer a Nationwide Price Promise on all products.

Contact Us

Terms and Conditions

Internal Reference: 119636

The Victron VE Panel (VEP) is an advanced electrical panel designed to house the connections and circuit protection for 3kW and 5kW models of the MultiPlus and Quattro inverter/chargers. It simplifies installation, ensures safety, and provides a code-compliant solution for various system configurations, including 120V single-phase, 240V split-phase, and 3-phase setups.

IMPORTANT NOTICE:

Please note that the images of the product shown above are for illustrative purposes only.

While we strive to provide accurate representations, there might be slight differences between the product image and the actual product you receive. These variations could be due to lighting, individual screen settings, product enhancements, or minor design updates from the manufacturer.

We assure you that any discrepancies are minimal and will not affect the overall quality and functionality of the product.

If you have any questions or concerns, please feel free to contact our customer support team for further assistance at support@batsol.co.uk or phone us at 01752 656270.

At Batteries and Solar, your satisfaction is our top priority, and we are committed to providing the best shopping experience for you.

Thank you for choosing Batteries and Solar for your purchase.

  • Pre-Wired Enclosure – Ready for easy integration into your power system.
  • AC Bypass Switch – Maintains power to your loads while the inverter/batteries are under maintenance.
  • Battery DC Disconnect Breaker (250A) – Ensures safe isolation during servicing.
  • Inverter AC Input Protection – Overcurrent protection breakers included.
  • DIN-Mount Breakers – Quick and easy operation for AC and DC circuits.
  • Integrated 500A/50mV DC Shunt – Seamless battery status monitoring.
  • UL & CSA Certified – Meets UL 1741 and CSA C22.2 safety standards.
  • Flexible Configurations – Supports single 120V, 120/240V split-phase, and 3-phase systems.
  • Busbars Included – DC negative, positive, and ground busbars for DC loads and PV arrays.
  • DIN Rail Mounts for DC Breakers – Allows for easy expansion and additional circuit protection.
  • Knockouts for Easy Installation – Pre-cut openings for inverter/charger, battery cables, and PV connections.

SpecificationDetails
System Voltage24V or 48V DC (model-dependent)
Inverter CompatibilityVictron MultiPlus & Quattro (3kVA and 5kVA models)
AC Input Voltage- Single-phase: 120V
- Split-phase: 120/240V
- Three-phase: 3x120V / 208V (for 3-phase models)
AC Bypass Switch RatingFull system current capability
Battery DC Disconnect Breaker250A
DC Shunt500A / 50mV (pre-installed for battery monitoring)
Overcurrent Protection- Inverter AC input breakers
- DIN-mount AC & DC breakers
Busbars IncludedDC Negative, Positive, and Ground (for DC loads and PV arrays)
Breaker MountingDIN rail slots for DC load/disconnect breakers
Pre-cut Knockouts- Inverter/charger and battery cables
- PV input/output
- DC panel mount breakers
Expansion CapabilityUp to 5 follower VE Panels per phase (6 total per phase)
Enclosure TypeInternally pre-wired, UL & CSA certified
InstallationIndoor use only
Certifications & ComplianceUL 1741 & CSA C22.2 (complies with North American electrical safety standards)
Built-in Bypass AssemblyEnsures uninterrupted power to loads during maintenance
