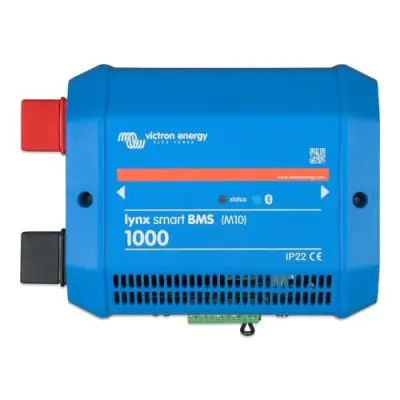

Victron Energy Lynx Smart BMS 1000 (M10) LYN034170210

The Lynx Smart BMS is a dedicated Battery Management System for Victron Lithium Smart Batteries. There are multiple BMS-es available for the Victron Energy Smart Lithium batteries, and the Lynx Smart is the most feature rich and complete option.

£ 990.72 990.72 GBP £ 990.72 VAT Included

£ 825.60 VAT Included

This combination does not exist.

Add to cart

Found it cheaper? We offer a Nationwide Price Promise on all products.

Terms and Conditions

Internal Reference: 119014

The Lynx Smart BMS is a dedicated Battery Management System (BMS) designed for use with Victron Energy Lithium Smart Batteries. It is an integral part of the Lynx Distribution System and offers advanced features such as battery monitoring, contactor management, and Bluetooth communication via the VictronConnect app. The Lynx Smart BMS 1000A is specifically designed to handle up to 1000A continuous current, making it ideal for larger systems with high power demands.

IMPORTANT NOTICE:

Please note that the images of the product shown above are for illustrative purposes only.

While we strive to provide accurate representations, there might be slight differences between the product image and the actual product you receive. These variations could be due to lighting, individual screen settings, product enhancements, or minor design updates from the manufacturer.

We assure you that any discrepancies are minimal and will not affect the overall quality and functionality of the product.

If you have any questions or concerns, please feel free to contact our customer support team for further assistance at support@batsol.co.uk or phone us at 01752 656270.

At Batteries and Solar, your satisfaction is our top priority, and we are committed to providing the best shopping experience for you.

Thank you for choosing Batteries and Solar for your purchase.

Features of the Lynx Smart BMS

Battery Management System

The Lynx Smart BMS is a dedicated Battery Management System for Victron Energy Lithium Smart Batteries. It contains a positive and a negative busbar, a BMS, a contactor and a battery monitor. It is part of the Lynx Distribution system. It can communicate via Bluetooth with the VictronConnect app and can communicate via VE.Can with an GX device.

The Lynx Smart BMS has a status LED and a Bluetooth LED.

VictronConnect app

The Lynx Smart BMS and up to 4 connected Lynx Distributors can be monitored and setup with the VictronConnect app. For more information see the VictronConnect app download page and the VictronConnect manual.

GX device

The Lynx Smart BMS and up to 4 connected Lynx Distributors can be monitored with a GX device. For more information on the GX device see the GX device product page.

The GX device can be connected to the VRM portal allowing for remote monitoring.

For more information on the VRM portal see the VRM page.

Lithium Smart Batteries

The Lynx Smart BMS is a dedicated BMS for the Victron Energy range of Lithium Smart batteries. These batteries are lithium iron phosphate (LiFePO4) batteries and are available in 12.8V or 25.6V and in a variety of capacities. They can be connected in series, parallel and series/parallel so a battery bank for system voltages of 12V, 24V or 48V can be created. Up to four 12.8V batteries or two 25.6V batteries can be connected in series.

Up to 5 batteries or battery series strings can be connected in parallel.

The Lynx Distribution System

The Lynx Distribution System consist of the following parts:

• Lynx Power In – A positive and negative busbar with 4 connections for batteries or DC equipment.

• Lynx Distributor – A positive and negative busbar with 4 fused connections for batteries or DC equipment together with fuse monitoring

• Lynx Shunt VE.Can – A positive busbar with a space for a main system fuse and a negative busbar with a shunt for battery monitoring. It has VE.Can communication for monitoring and setup with a GX device.

• Lynx Smart BMS – For use together with Victron Energy Smart Lithium batteries. It contains a positive busbar with a contactor that is driven by a battery management system (BMS) and a negative busbar with a shunt for battery monitoring. It has Bluetooth communication for monitoring and setup via the VictronConnect App and VE.Can communication for monitoring with a GX device and the VRM portal.

Power	Lynx Smart BMS 500A	Lynx Smart BMS 1000A
Supply voltage range	9 – 60Vdc
Supported system voltages	12, 24 or 48V
Reverse polarity protection	No
Main safety contactor continuous current rating	500A continuous	1000A continuous
Main safety contactor peak current rating	600A for 5 minutes	1200A for 5 minutes
Power consumption OFF mode	0.3mA for all system voltages
Power consumption in Standby mode	Approximately 0.6W (50mA at 12V)
Power consumption in ON mode	Approximately 2.6W (217mA at 12V) depending on the state of the relays	Approximately 4.2W (350mA at 12V) depending on the state of the relays
Minimum load resistance for pre-charging	10O and above for 12V systems 20O and above for 24V and 48V systems
AUX output maximum current rating	1.1A continuous, protected by resettable fuse
Allow-to-charge port maximum current rating	0.5A at 60Vdc, protected by resettable fuse
Allow-to-discharge port maximum current rating	0.5A at 60Vdc, protected by resettable fuse
Programmable relay (SPDT) maximum current rating	2A at 60Vdc

Connections	Lynx Smart BMS 500A	Lynx Smart BMS 1000A
Busbar	M8 (Torque: 14 Nm)	M10 (Torque: 33 Nm) (14Nm for units with a serial number before HQ2340XXXX)
VE.Can	RJ45 and RJ45 terminator
I/O	Removable multi-connector with screw terminals
Battery BMS cables	Male and female circular 3-pole connector with M8 screw ring Up to 20 batteries can be connected to the BMS by daisy chaining them
Lynx Distributor (up to 4 modules)	RJ10 (cable ships with each Lynx Distributor)

Physical	Lynx Smart BMS 500A	Lynx Smart BMS 1000A
Enclosure material	ABS
Enclosure dimensions (h x w x d)	190 x 180 x 80mm	230 x 180 x 100mm
Unit weight	1.9 kg	2.7 kg
Busbar material	Tinned copper
Busbar dimensions (h x w)	8 x 30mm

Environmental	Lynx Smart BMS 500A	Lynx Smart BMS 1000A
Operating temperature range	-40°C to +60°
Storage temperature range	-40°C to +60°
Humidity	Max. 95% (non-condensing)
Protection class	IP22

Standards	Lynx Smart BMS 500A	Lynx Smart BMS 1000A
Safety	EN-IEC 63000:2018
EMC	EN-IEC 61000-6-3:2007/A1:2011/AC:2012
QMS	NEN-EN-ISO 9001:2015
