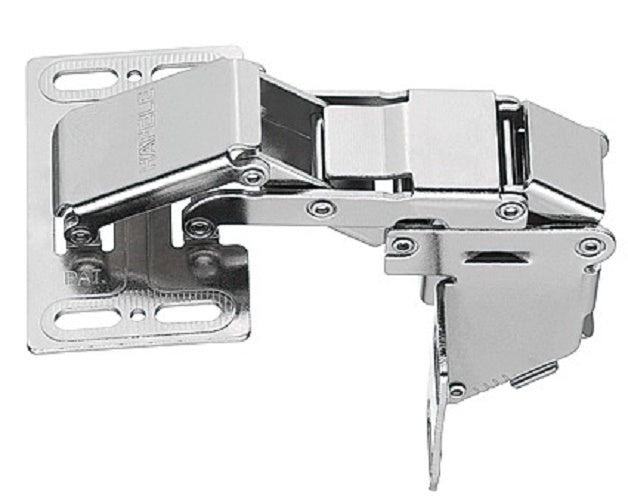

Swing Up Flap Hinge Mounting With Panel - HA70402
Opening angle 90 ÌŠ
Screw fixing NOT included
For maximum flap thickness 15 or 16 mm
For flap weight up to 2.1 kg
For flap width max. 800 mm
For flap height max. 340 mm
Side and depth adjustment via slots
Automatic closing and opening mechanism
The pull is adjustable in accordance with the flap weight;
- different hinge types for different flap weights are therefore not required
Colour/finish: nickel plated
Material: steel
Minimum of 2 required per flap
Order Hospa Ø 4.0 mm pan head screws separately
Order qty: 1 pc
Internal Reference:
118259
