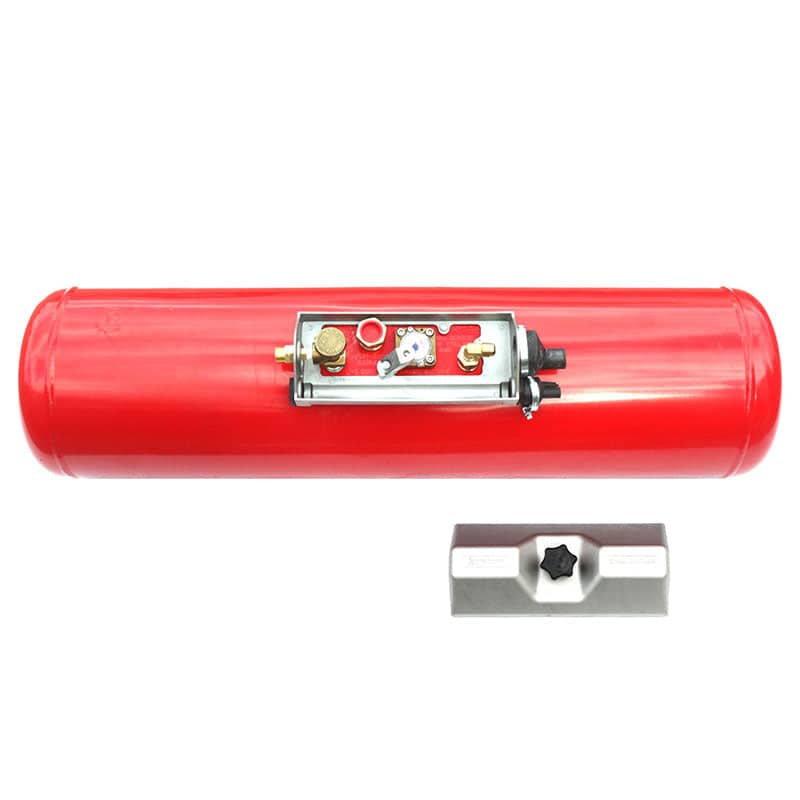

23 Litres Motorhome Gas Tank Only - Ø230mm by 645mm with set of valves and box - 400004

https://www.batteriesandsolar.co.uk/web/image/product.template/268728/image_1920?unique=ba3f2d9

23 Litre Motorhome Gas Tank 230mm by 645mm 23 Litre Motorhome Gas Tank 230mm by 645mm with set of valves and box. Red vapour tanks are specially designed for campervans, caravans, motorhomes and any other RV vehicles as they provide gas in vapour phase. The tank can be safely refilled trough dedicated filling point at every Autogas LPG service station. "https://www.batteriesandsolar.co.uk/wp-content/uploads/2022/07/valve-plate-4-hole-motorhome-gas-tank.jpg"> The valves starting from the left are: Manual outlet valve, thread without adapter: 1/4" NPT, with adapter: W21.8 LH. Over pressure relief valve (PRV) - in case of sudden pressure increase (over 27 bar) the excess gas is released to the environment. Gas level float with mechanical gauge. Filling valve with 80% cut off valve (OPD), female thread without elbow: 3/8" NPT, with elbow 3/4" UNF JIC. Specifications Diameter 230mm Length 645mm Tank weight 15kg Usable capacity 18L (9.36kg) Full tank weight 23.5kg

£ 315.46 315.46 GBP £ 315.46 VAT Included

£ 262.88 VAT Included
