20 Litres Motorhome Gas Tank Only with Feet - Ø200mm by 717mm with set of valves and box - 400081

https://www.batteriesandsolar.co.uk/web/image/product.template/268707/image_1920?unique=ba3f2d9

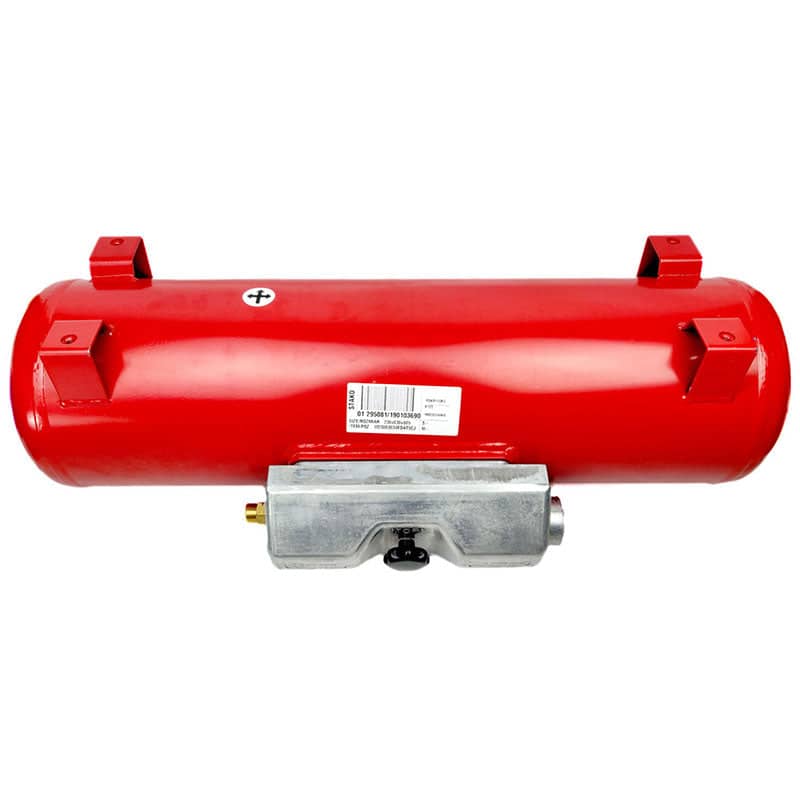

20 Litres Motorhome Gas Tank with Feet 200mm by 717mm 20 Litre Motorhome Vapour Gas Tank with Feet 200mm by 540mm with set of valves and box. Red vapour tanks are specially designed for campervans, caravans, motorhomes and any other RV vehicles as they provide gas in vapour phase. The tank can be safely refilled trough dedicated filling point at every Autogas LPG service station. This is a special version with 4 mounting feet. " https://www.batteriesandsolar.co.uk/wp-content/uploads/2022/07/valve-plate-4-hole-motorhome-gas-tank.jpg"> The valves starting from the left are: Manual outlet valve, thread without adapter: 1/4" NPT, with adapter: W21.8 LH. Over pressure relief valve (PRV) - in case of sudden pressure increase (over 27 bar) the excess gas is released to the environment. Gas level float with mechanical gauge. Filling valve with 80% cut off valve (OPD), female thread without elbow: 3/8" NPT, with elbow 3/4" UNF JIC. Tank Specifications (marked in red) Diameter [mm] Length [mm] Capacity [L] 80% capacity Empty weight [kg] Full tank weight [kg] 200 540 15 12L (6.18kg) 12.8 19 200 721 20 16L (8.32kg) 15 23 200 891 25 20L (10.4kg) 16.8 26.8 200 1070 30 24L (12.48kg) 18.9 30.9 230 645 23 18L (9.36kg) 14.5 23.5 230 822 30 24L (12.48kg) 16.5 28.5 230 1014 38 30L (15.6kg) 19.2 34.2 270 605 30 24L (12.48kg) 14.6 26.6 270 785 40 32L (16.64kg) 17.2 33.2 270 1060 55 44L (22.88kg) 21.7 43.7 300 647 40 32L (16.64kg) 17.2 33.2 300 935 60 48L (24.96kg) 21.8 45.8 300 1085 70 56L (29.12kg) 23.4 51.4 315 870 60 48L (24.96kg) 24.5 48.5 315 1000 70 56L (29.12kg) 28.4 56.4 360 629 55 44L (22.88kg) 24.9 46.9 360 936 85 68L (35.36kg) 33 67 360 1087 100 80L (41.6kg) 36 76

£ 410.62 410.62 GBP £ 410.62 VAT Included

£ 342.18 VAT Included

This combination does not exist.


Internal Reference: 113591
