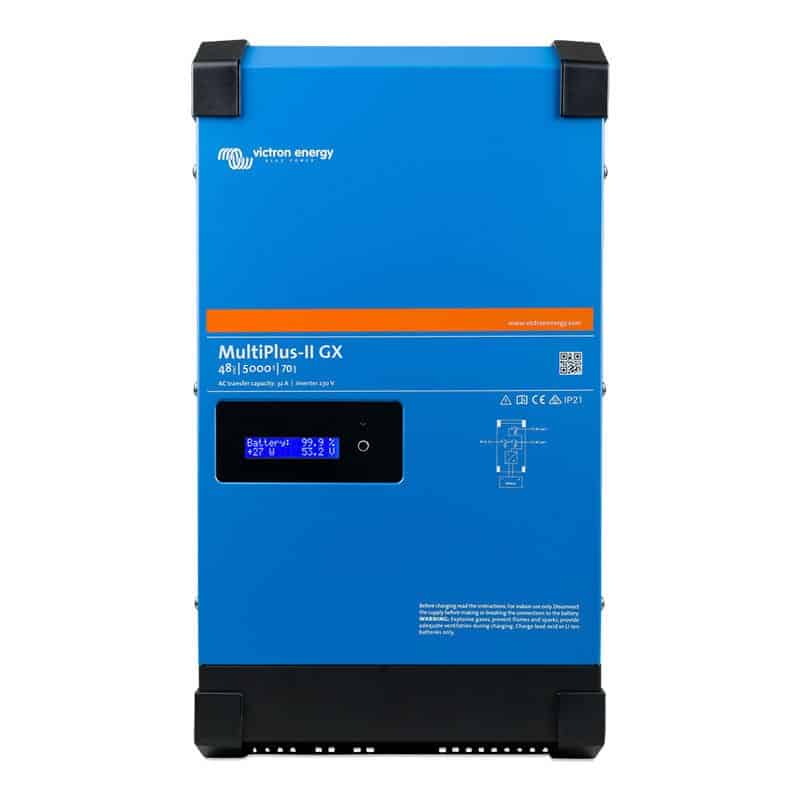

Victron Energy MultiPlus-II 48/5000/70-50 230V GX PMP482506000

https://www.batteriesandsolar.co.uk/web/image/product.template/265230/image_1920?unique=22e249e

The Victron MultiPlus-II 48/5000/70-50 230V GX is a high-performance inverter/charger designed for both on-grid and off-grid applications. With built-in device networking capabilities, it allows for seamless integration with solar chargers, batteries, and other devices, offering advanced monitoring and control via a smartphone or smart device.

£ 949.44 949.44 GBP £ 949.44 VAT Included

£ 791.20 VAT Included

  • Inverter Input Voltage
  • Inverter Output Voltage
  • Inverter Output Power (VA)
  • Charger Input Voltage
  • Charger Output Voltage
  • Charger Output Current
  • Transfer Switch (Amps)
  • ​IP Rating
  • ​Bluetooth
  • Brand
  • ​Warranty

This combination does not exist.

Found it cheaper? We offer a Nationwide Price Promise on all products.

Contact Us
Inverter Input Voltage: 38-66V
Inverter Output Voltage: 230V
Inverter Output Power (VA): 5000VA - 4000W
Charger Input Voltage: 187-265V
Charger Output Voltage: 57.6V
Charger Output Current: 70A
Transfer Switch (Amps): 50A
​IP Rating: IP21
​Bluetooth: No
Brand: Victron Energy B.V.
​Warranty: 5 Years

Terms and Conditions

Internal Reference: 109296

The Victron MultiPlus-II 48/5000/70-50 230V GX is an advanced inverter/charger system that integrates both power conversion and network functionality, making it ideal for a wide range of applications, including off-grid, grid-connected, and remote power installations. The unit combines the MultiPlus-II inverter/charger with the GX device, which allows for comprehensive monitoring and control of your power system.

With its ability to operate in parallel or three-phase configurations, the MultiPlus-II GX is scalable for higher power needs and is capable of adjusting battery charge rates for efficient energy management. It includes a host of advanced features like uninterrupted power supply (UPS), load limit settings, and the ability to supplement limited grid power with battery energy, all of which can be managed remotely via your smartphone or tablet.

IMPORTANT NOTICE:

Please note that the images of the product shown above are for illustrative purposes only.

While we strive to provide accurate representations, there might be slight differences between the product image and the actual product you receive. These variations could be due to lighting, individual screen settings, product enhancements, or minor design updates from the manufacturer.

We assure you that any discrepancies are minimal and will not affect the overall quality and functionality of the product.

If you have any questions or concerns, please feel free to contact our customer support team for further assistance at support@batsol.co.uk or phone us at 01752 656270.

At Batteries and Solar, your satisfaction is our top priority, and we are committed to providing the best shopping experience for you.

Thank you for choosing Batteries and Solar for your purchase.

Features of the MultiPlus-II 48/5000 GX

A MultiPlus-II with LCD and GX functionality

The MultiPlus-II 48/5000 GX integrates a MultiPlus-II inverter/charger and a GX device with a 2 x 16 character display.

Display and Wi-Fi

The display reads battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other Wi-Fi enabled device.

GX device

The integrated GX device includes:

A BMS-Can interface. This can be used to connect to a compatible CAN-bus managed battery. Note that this not a VE.Can compatible port.

A USB port.

A Ethernet port.

A VE.Direct port.

Applications

The MultiPlus-II 48/5000 GX is intended for applications where additional interfacing with other products and/or remote monitoring is required, such as on-grid or off-grid energy storage systems and certain mobile applications.

Parallel and three phase operation

Only one GX unit is needed in case of Parallel and three phase operation.

When coupled with a Cerbo GX you can monitor and control your MultiPlus-II 48/5000 GX and system or systems’ locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backup generator and more…”



Brand

Victron Energy
Manufacturer Part Number

PMP482506000
GTIN

8719076048824
Voltage

48V
Cont. Output Power at 25°C

5000VA
Peak Power

9000W
Output AC Voltage

230V
Transfer Switch

50A
Max. AC Input Current

50A
Max. Battery Charge Current

70A
Protection Category

IP22
Efficiency

96%
Bluetooth Compatible

Yes
Dimensions

H506 x W275 x D147mm
Weight

26Kg
Warranty

5 Years
Country of Manufacture

India

Datasheet

Product Manual
