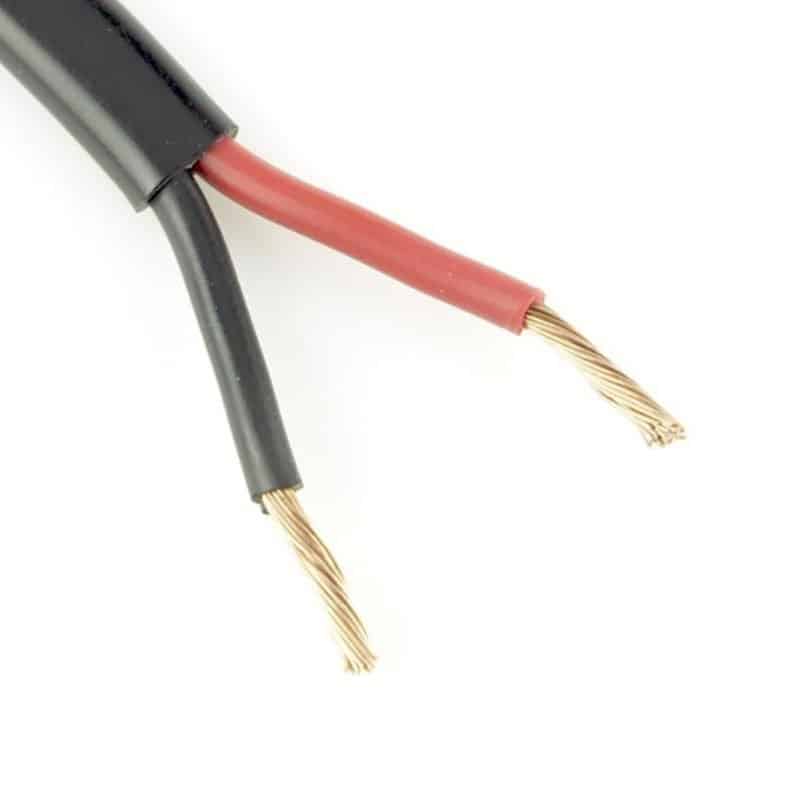

2 Core Flat Automotive High Temp Thinwall Cable - 0.5mm 11A C200TW-100BBR
2 Core Flat Automotive High Temp Thinwall Cable - 0.5mm 11A - C200TW
In many ways the more modern and technically advanced version of the Standard PVC BS6862 cables.
Thinwall cables are high temperature, low voltage for usage in the automotive, marine and other likewise industries.
Weighs less in the vehicle Thinner to save you space - approx. 30% less volume! Ideal for a harness, Higher amp rating for equivalent cross section (potential to downsize your cable/save costs), Harder grade PVC generally means a longer life span, Used by the leading OEMS.
Specifications
Hard Grade Thermoplastic PVC Lead Free Insulation, according to ISO 6722 Class B, Plain copper conductor, C-EPT1, According to EN 13602, Conductor according to ISO 6722/LV112 Type B, Generally for use at 40°C to +105°C with excursions up to +120°C -12 & 24v systems, (MAX 60v), Part resistant to petrol, lubricating oils and diluted acids, More commonly found in vehicles post 1995.
Amps Range: 10-19A |
Brand: Batteries & Solar |
Cable Colour: Black |
Cable Diameter: 0.5mm (20AWG) |
Cable Shape: Flat |
Cable Sheath Type: Thinwall |
Current (Amps) (A): 11 |
Number of Cores: 2 Core |
Internal Reference:
107557
