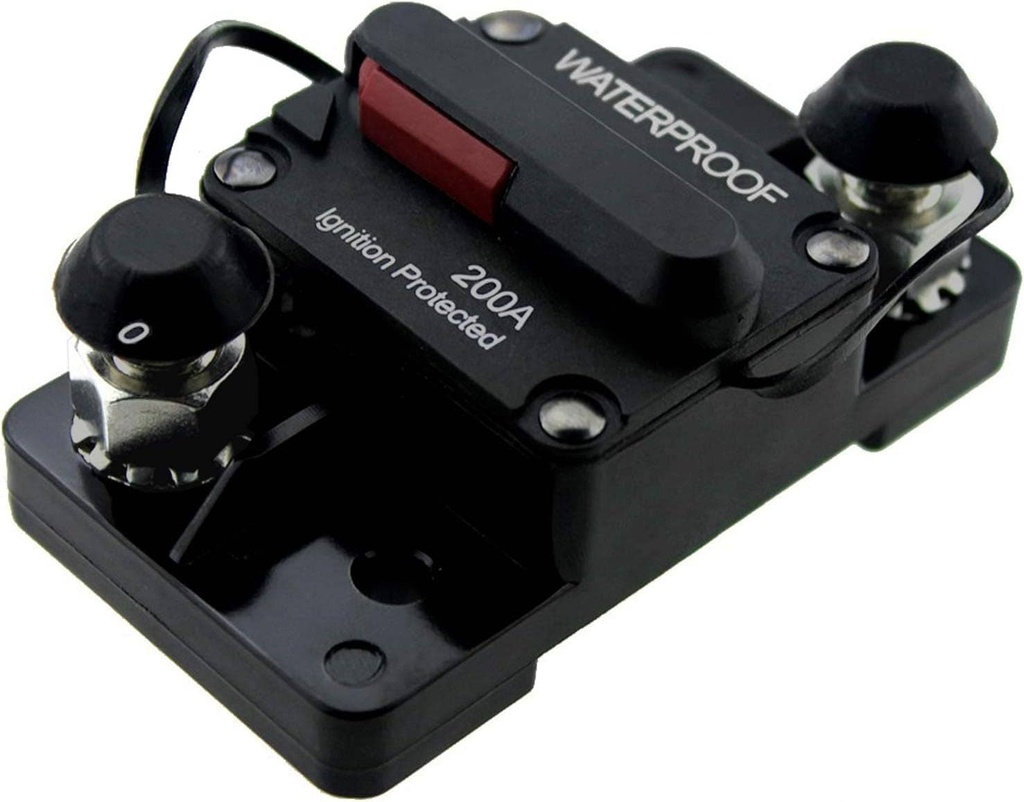

DC12-24V 200A Waterproof Circuit Breaker Reset Inline Fuse I

Protect your DC systems from high current events such as short circuits, equipment faults, or wiring errors with this reliable thermal circuit breaker. Unlike traditional fuses, this breaker can be easily reset after tripping, making it a long-lasting and environmentally friendly solution.

This product is no longer available.

Terms and Conditions

Internal Reference: 106836

This 200A waterproof circuit breaker serves as a resettable fuse, providing robust over-current protection for DC systems ranging from 12V to 48V. Ideal for safeguarding solar, wind, automotive, and marine applications, its resettable design eliminates the need for replacement fuses, ensuring cost-effectiveness and convenience. Built with high-strength thermal plastic and rated for IP67 waterproofing, this breaker is designed to withstand harsh environments while maintaining optimal performance.

IMPORTANT NOTICE:

Please note that the images of the product shown above are for illustrative purposes only.

While we strive to provide accurate representations, there might be slight differences between the product image and the actual product you receive. These variations could be due to lighting, individual screen settings, product enhancements, or minor design updates from the manufacturer.

We assure you that any discrepancies are minimal and will not affect the overall quality and functionality of the product.

If you have any questions or concerns, please feel free to contact our customer support team for further assistance at support@batsol.co.uk or phone us at 01752 656270.

At Batteries and Solar, your satisfaction is our top priority, and we are committed to providing the best shopping experience for you.

Thank you for choosing Batteries and Solar for your purchase.

Resettable Fuse Design: Reusable protection against over-current events, saving time and money.
Wide Voltage Compatibility: Operates with DC systems from 12V to 48V, ensuring versatility.
Durable Build: Made from UL94V-0 rated thermal plastic for heat resistance and strength.
Waterproof and Ignition Protected: IP67 rating and compliance with S.A.E. J1625, J1171, UL1500 standards.
Versatile Applications: Suitable for solar systems, wind energy setups, automotive, and marine environments.

Specification	Detail
Rating	200A
Type	Thermal overcurrent protection device
Material	Thermal plastic (UL rated 94V-0)
Operating Temperature	-32°C to 82°C
Storage Temperature	-34°C to 149°C
Terminal Size	M10
Enclosure	IP67
Size	86 x 48 x 37 mm
Weight	138g
Waterproof Rating	IP67
Standard Compliance	S.A.E. J1625, J1171, UL1500
