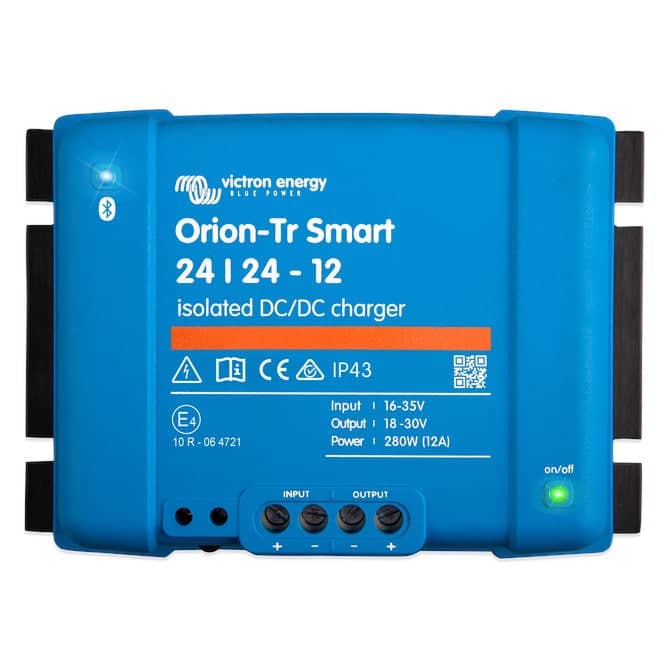

Victron Energy Orion-Tr Smart DC-DC charger 24/24-12A (280W) Isolated ORI242428120

https://www.batteriesandsolar.co.uk/web/image/product.template/263589/image_1920?unique=aeed040

The Victron Orion-Tr Smart DC-DC charger is a professional, adaptive 3-stage charger designed for dual battery systems in vehicles and boats. It features Bluetooth monitoring and programming, engine running detection, and compatibility with both lead acid and lithium batteries.

£ 147.84 147.84 GBP £ 147.84 VAT Included

£ 123.20 VAT Included

  • DC-DC Charger Input Voltage
  • DC-DC Charger Output Voltage
  • DC-DC Charger Output Current
  • Isolation Type
  • Number of Outputs
  • Battery Compatibility
  • ​IP Rating
  • ​Bluetooth
  • Brand
  • ​Warranty

This combination does not exist.

Found it cheaper? We offer a Nationwide Price Promise on all products.

Contact Us
DC-DC Charger Input Voltage: 24V
DC-DC Charger Output Voltage: 24V
DC-DC Charger Output Current: 12A
Isolation Type: Isolated
Number of Outputs: 1
​IP Rating: IP65
​Bluetooth: Yes
Brand: Victron Energy B.V.
​Warranty: 5 Years

Terms and Conditions

Internal Reference: 105935

The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth.

For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism.

The Orion Tr-Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power.

Suitable for high temperatures up to 55°C with a full rated output up to 40°C.

IMPORTANT NOTICE:

Please note that the images of the product shown above are for illustrative purposes only.

While we strive to provide accurate representations, there might be slight differences between the product image and the actual product you receive. These variations could be due to lighting, individual screen settings, product enhancements, or minor design updates from the manufacturer.

We assure you that any discrepancies are minimal and will not affect the overall quality and functionality of the product.

If you have any questions or concerns, please feel free to contact our customer support team for further assistance at support@batsol.co.uk or phone us at 01752 656270.

At Batteries and Solar, your satisfaction is our top priority, and we are committed to providing the best shopping experience for you.

Thank you for choosing Batteries and Solar for your purchase.

Bluetooth Smart enabled

Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available.

Fully programmable

Battery charge algorithm (configurable) or fixed output.

Smart alternator compatibility: engine running detection mechanism.

Adaptive 3-stage charge algorithm: bulk – absorption – float

For lead acid batteries it is important that during shallow discharges the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged.

For lithium batteries absorption time is fixed, default 2 hours.

Alternatively, a fixed output voltage can be chosen.

Remote on-off

A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example).

All models are short circuit proof and can be paralleled to increase output current

An unlimited number of units can be connected in parallel.

High temperature protected

The output current will reduce at high ambient temperature.

IP43 protection

When installed with the screw terminals oriented downwards.

Screw terminals

No special tools needed for installation.

Input fuse (not replaceable)

Brand

Victron Energy
Manufacturer Part Number

ORI242428120
GTIN

8719076046097
Voltage

24/24V
Cont. Output Current

12A
Protection Category

IP43 (electronic components), IP22 (connection area)
Efficiency

89%
Bluetooth Enabled

Yes
Dimensions

H130 x W186 x D70mm
Weight

1.3Kg
Warranty

5 Years
Country of Manufacture

India
