  2. Victron Energy Orion-Tr DC-DC converter 12/12-9A (110W) Isolated ORI121210110

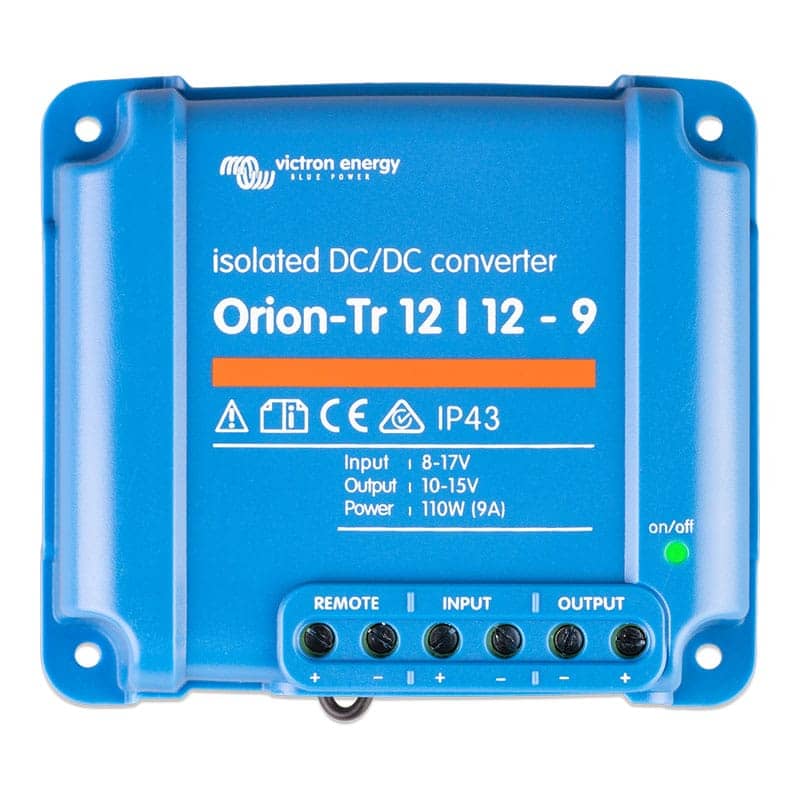

Victron Energy Orion-Tr DC-DC converter 12/12-9A (110W) Isolated ORI121210110

https://www.batteriesandsolar.co.uk/web/image/product.template/263585/image_1920?unique=436a003
The  Victron Orion-Tr 12/12-9A Isolated DC-DC Converter is a  high-performance power solution for both battery charging and voltage conversion in 12V systems, with added versatility for parallel connection and use in high-temperature environments. It ensures reliability, safety, and efficiency, making it an excellent choice for  marine, automotive, or other  off-grid applications.

£ 36.60 36.6 GBP £ 36.60 VAT Included £ 58.56

£ 30.50 VAT Included £ 58.56

  • 1 DC-DC Converter Input Voltage
  • 2 DC-DC Converter Output Voltage
  • 3 DC-DC Converter Output Current
  • 4 Isolation Type
  • 5 Number of Outputs
  • 6 Battery Compatibility
  • ​7 IP Rating
  • ​8 Bluetooth
  • 9 Brand
  • ​10 Warranty

This combination does not exist.

Found it cheaper? We offer a Nationwide Price Promise on all products.

Contact Us
1 DC-DC Converter Input Voltage: 12V
2 DC-DC Converter Output Voltage: 12V
3 DC-DC Converter Output Current: 9A
4 Isolation Type: Isolated
5 Number of Outputs: 1
​7 IP Rating: IP43
​8 Bluetooth: No
9 Brand: Victron Energy B.V.
​10 Warranty: 5 Years

Terms and Conditions

Internal Reference: 105931

The Orion-Tr 12/12-9A DC-DC Converter from Victron Energy offers robust and isolated power conversion for 12V applications. Its remote on/off functionality allows for convenient control via a low-power switch or even the engine run/stop switch, eliminating the need for a high-current switch in the input wiring. This feature, combined with its adjustable output voltage, makes it versatile enough to function as a battery charger in systems where a 12V battery is required.

The converter is built to handle high temperatures with an automatic reduction in output current when ambient temperatures exceed safe limits. It also features IP43 protection when installed with screw terminals facing downwards, ensuring it is safe from dust and moisture. Additionally, the converter is short circuit proof and can be connected in parallel to increase the output current, making it ideal for expanding power needs by linking an unlimited number of units together.

The Orion-Tr 12/12-9A is designed for easy installation, with screw terminals that require no special tools. The input fuse adds an extra layer of protection, though it is not replaceable. This model offers exceptional flexibility for a wide range of DC-DC conversion and charging applications.

IMPORTANT NOTICE:

Please note that the images of the product shown above are for illustrative purposes only.

While we strive to provide accurate representations, there might be slight differences between the product image and the actual product you receive. These variations could be due to lighting, individual screen settings, product enhancements, or minor design updates from the manufacturer.

We assure you that any discrepancies are minimal and will not affect the overall quality and functionality of the product.

If you have any questions or concerns, please feel free to contact our customer support team for further assistance at support@batsol.co.uk or phone us at 01752 656270.

At Batteries and Solar, your satisfaction is our top priority, and we are committed to providing the best shopping experience for you.

Thank you for choosing Batteries and Solar for your purchase.

  • Remote on/off functionality: Operate the converter using a low-power switch or engine run/stop switch.
  • Adjustable output voltage: Can function as a battery charger for 12V batteries in 24V systems.
  • Short circuit proof: Ensures safety and reliability in demanding environments.
  • Paralleling capability: Connect an unlimited number of units to increase output current.
  • High temperature protection: Output current is reduced when ambient temperature rises to ensure safety.
  • IP43 protection: Safeguards against dust and water ingress when installed correctly.
  • Easy installation: Screw terminals for quick and tool-free setup.
  • Input fuse (non-replaceable): Provides additional protection for 12V and 24V input models.
SpecificationDetails
ModelORI121210110
Input Voltage12V (also available in 24V and 48V models)
Output VoltageAdjustable, typically 12V
Output Current9A (110W)
Remote On/OffYes
ProtectionShort circuit proof, high temperature protection, IP43
Input FuseNon-replaceable (12V and 24V models only)
Screw TerminalsYes, no special tools required for installation
Paralleling CapabilityUnlimited units can be connected for increased output
Temperature ControlOutput current reduces at high ambient temperature
DimensionsCompact, easy to install

Dimension Drawing

Datasheet
