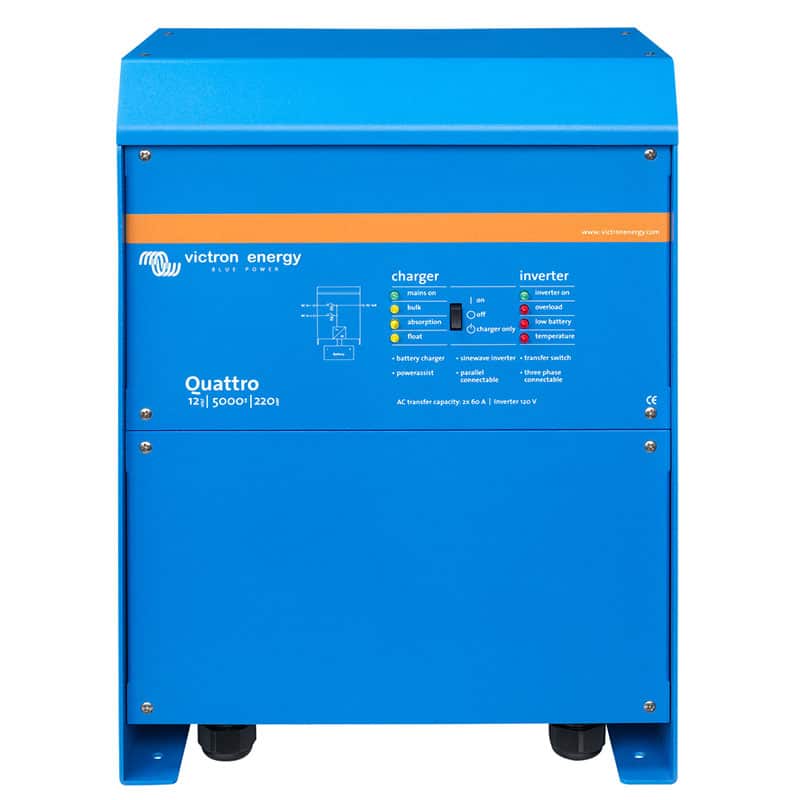

Victron Energy Quattro 12/5000/220-100/100 120V VE.Bus QUA125021100

https://www.batteriesandsolar.co.uk/web/image/product.template/263154/image_1920?unique=22e249e

The Victron Quattro 12/5000/220-100/100 is a multifunctional inverter and charger designed for versatility and high performance. With dual AC inputs, PowerAssist technology, and the ability to operate in parallel, this unit ensures reliable power even in off-grid and grid-connected systems. Ideal for both residential and commercial setups, the Quattro ensures seamless power switching and optimal energy management.

£ 2,760.00 2760.0 GBP £ 2,760.00 VAT Included

£ 2,300.00 VAT Included

  • Inverter Input Voltage
  • Inverter Output Voltage
  • Inverter Output Power (VA)
  • Charger Input Voltage
  • Charger Output Voltage
  • Charger Output Current
  • Transfer Switch (Amps)
  • ​IP Rating
  • ​Bluetooth
  • Brand
  • ​Warranty

This combination does not exist.

Found it cheaper? We offer a Nationwide Price Promise on all products.

Contact Us
Inverter Input Voltage: 9.5-17V
Inverter Output Voltage: 120V
Inverter Output Power (VA): 5000VA - 4000W
Charger Input Voltage: 90-140V
Charger Output Voltage: 14.4V
Charger Output Current: 100A
Transfer Switch (Amps): 100A
​IP Rating: IP21
​Bluetooth: No
Brand: Victron Energy B.V.
​Warranty: 5 Years

Terms and Conditions

Internal Reference: 105395

The Victron Quattro 12/5000/220-100/100 combines both inverter and charger functionalities into one compact unit. With dual AC inputs, the Quattro can automatically connect to the active source, making it perfect for setups that require two AC sources, such as shore power and a generator. This system operates using a true sine wave inverter, providing stable and reliable power for sensitive electronics. The Quattro features PowerAssist technology, which prevents overloads by adjusting battery charging and boosting generator or shore power output when needed.

In addition, the unit is compatible with parallel operation, allowing multiple Quattro units to work together for greater power output. It also supports three-phase and split-phase configurations, offering flexibility for various power demands. Remote monitoring and control are made possible via the VRM portal, giving you access to your system from anywhere in the world. Whether you are looking for an off-grid solution or a reliable backup system, the Victron Quattro delivers consistent, high-quality performance.

IMPORTANT NOTICE:

Please note that the images of the product shown above are for illustrative purposes only.

While we strive to provide accurate representations, there might be slight differences between the product image and the actual product you receive. These variations could be due to lighting, individual screen settings, product enhancements, or minor design updates from the manufacturer.

We assure you that any discrepancies are minimal and will not affect the overall quality and functionality of the product.

If you have any questions or concerns, please feel free to contact our customer support team for further assistance at support@batsol.co.uk or phone us at 01752 656270.

At Batteries and Solar, your satisfaction is our top priority, and we are committed to providing the best shopping experience for you.

Thank you for choosing Batteries and Solar for your purchase.

Features of the Quattro 12/5000/220-100/100

Two AC Inputs & two AC Outputs

The Quattro can be connected to two independent AC sources, for example shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.

Unique PowerAssist feature

The Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

Virtually unlimited power thanks to parallel operation

Up to 6 Quattros can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.

Remote Monitoring and Control

When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Quattro and system or systems’ locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Quattro to auto starting a backupgenerator and more…

SpecificationDetails
BrandVictron Energy
ModelQuattro 12/5000/220-100/100
Voltage Input12V
Voltage Output110V
Current (Amps)200A
Wattage4000W
Inverter TypePure Sine Wave
Warranty5 Years
Weight34 kg
Dimensions280 x 350 x 470 mm
RegionNorth America
Parallel Operation CapabilityYes
Three-Phase CapabilityYes
Split-Phase CapabilityYes
Remote MonitoringVRM portal, Color Control GX
Transfer SwitchIntegrated
PowerAssistYes
Efficiency93%

Datasheet
