  2. Victron Energy MultiPlus-II 48/5000/70-50 230V PMP482505010

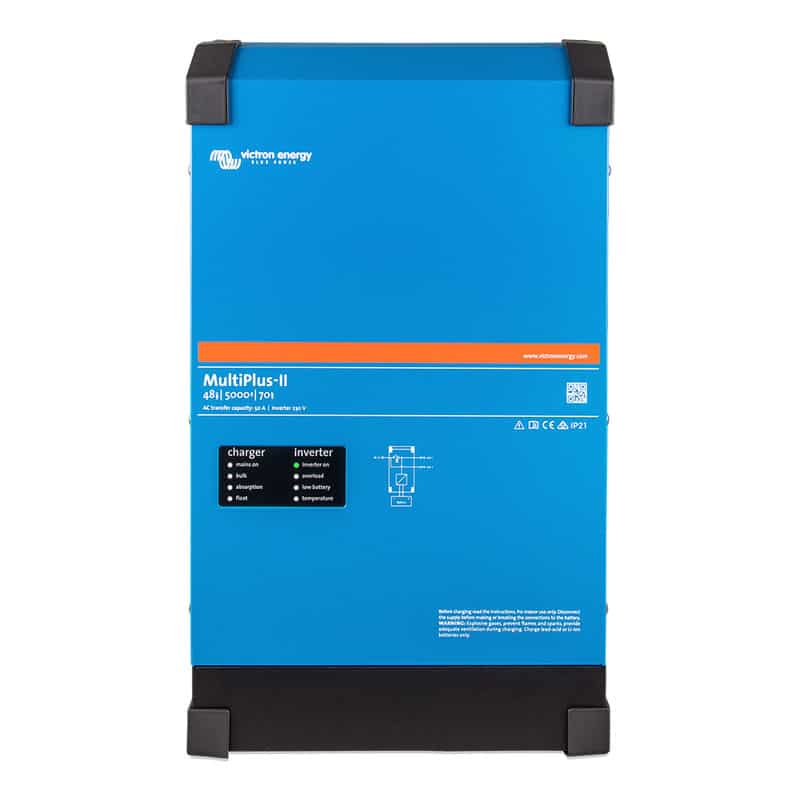

Victron Energy MultiPlus-II 48/5000/70-50 230V PMP482505010

https://www.batteriesandsolar.co.uk/web/image/product.template/263145/image_1920?unique=8b508f7
The Victron MultiPlus-II 48/5000/70-50 inverter/charger integrates the capabilities of both the MultiPlus and MultiGrid models, offering advanced power management for off-grid and grid-connected systems. With PowerAssist, external current sensing, and built-in anti-islanding, this multifunctional device is perfect for energy storage systems and uninterrupted AC power supply.

£ 857.28 857.28 GBP £ 857.28 VAT Included

£ 714.40 VAT Included

  • Inverter Input Voltage
  • Inverter Output Voltage
  • Inverter Output Power (VA)
  • Charger Input Voltage
  • Charger Output Voltage
  • Charger Output Current
  • Transfer Switch (Amps)
  • ​IP Rating
  • ​Bluetooth
  • Brand
  • ​Warranty

This combination does not exist.

Found it cheaper? We offer a Nationwide Price Promise on all products.

Contact Us
Inverter Input Voltage: 38-66V
Inverter Output Voltage: 230V
Inverter Output Power (VA): 5000VA - 4000W
Charger Input Voltage: 187-265V
Charger Output Voltage: 57.6V
Charger Output Current: 70A
Transfer Switch (Amps): 50A
​IP Rating: IP21
​Bluetooth: No
Brand: Victron Energy B.V.
​Warranty: 5 Years

Terms and Conditions

Internal Reference: 105385

The Victron MultiPlus-II 48/5000/70-50 230V combines the advanced features of the MultiPlus and MultiGrid, ensuring optimal energy management and reliable performance. Designed for off-grid, marine, and vehicle applications, it provides uninterrupted AC power in case of grid failure or when shore or generator power is lost, activating automatically in less than 20 milliseconds. The PowerControl and PowerAssist features prevent overload by adjusting the load distribution and boosting power using battery energy when needed.

In addition, the MultiPlus-II is a key component of Energy Storage Systems (ESS), offering seamless integration with MPPT Solar Chargers and Grid-tie PV Inverters. Remote monitoring and control are enabled via the VRM app and VRM portal, allowing users to manage and configure the system from anywhere. The MultiPlus-II's anti-islanding functionality and country approvals make it a reliable choice for various applications.

IMPORTANT NOTICE:

Please note that the images of the product shown above are for illustrative purposes only.

While we strive to provide accurate representations, there might be slight differences between the product image and the actual product you receive. These variations could be due to lighting, individual screen settings, product enhancements, or minor design updates from the manufacturer.

We assure you that any discrepancies are minimal and will not affect the overall quality and functionality of the product.

If you have any questions or concerns, please feel free to contact our customer support team for further assistance at support@batsol.co.uk or phone us at 01752 656270.

At Batteries and Solar, your satisfaction is our top priority, and we are committed to providing the best shopping experience for you.

Thank you for choosing Batteries and Solar for your purchase.

Multi-functional Design:

  • Combines the capabilities of MultiPlus and MultiGrid.
  • External current transformer option for PowerControl and PowerAssist, optimizing self-consumption with external current sensing (up to 32A).

PowerAssist Technology:

  • Prevents overload on a limited AC source (e.g., generator or shore power).
  • Automatically reduces battery charging to avoid overload.
  • Boosts output by supplementing power from the battery when necessary.

Uninterrupted AC Power (UPS Function):

  • Automatically switches to inverter mode during a grid failure or when shore/generator power is disconnected.
  • Ensures seamless power supply to connected loads within 20 milliseconds, preventing interruptions to sensitive electronic devices.

Energy Storage Systems (ESS):

  • Integral component for Victron ESS setups.
  • Compatible with MPPT Solar Chargers and Grid-tie PV Inverters.
  • Ideal for both off-grid and grid-connected PV systems.

Remote Monitoring and Control:

  • Monitor and control locally via LAN or remotely using the VRM app and portal.
  • Compatible with Color Control GX, Venus GX, and other GX products.
  • Access via phone, tablet, laptop, or PC.

Two AC Outputs:

  • Main output provides uninterrupted power.
  • Second output is live only when AC input is available, suitable for non-essential loads (e.g., water heaters).

Scalable Power:

  • Parallel operation allows up to 6 units to achieve higher power output.
  • Three-phase configuration is also possible for larger systems.

On-site and Remote Configuration:

  • Easily adjustable settings using VEConfigure software.
  • Remote configuration and monitoring through the VRM portal.

Weight31 kg
Dimensions565 × 320 × 149 mm
SKU

PMP482505010

Brand

Victron Energy

Colour

Blue

Country of origin

India

Global Identifier (GTIN code)

8719076047599

Intrastat statistical code

85044084

USA statistical code

8504.40.95-70

Manufacturer

Victron Energy

Quantity per masterbox

1

Quantity per pallet

15

Voltage

48v

Size

565 x 320 x 149

Datasheet
