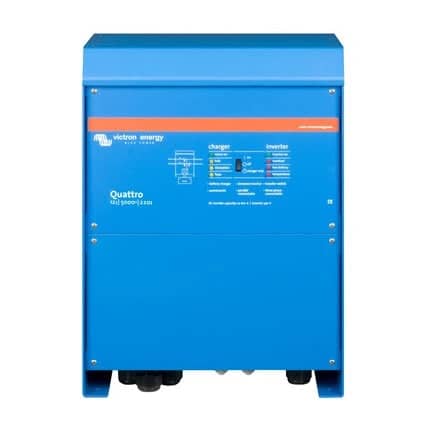

Victron Energy Quattro 12/5000/220-100/100 230V VE.Bus QUA125020000

The Victron Quattro 12/5000/220-100/100 is a versatile inverter and charger that can accept two AC inputs, ensuring seamless power supply for your equipment with hybrid PowerAssist technology, a true sine wave inverter, and remote monitoring capabilities.

£ 2,745.60 2745.6 GBP £ 2,745.60 VAT Included

£ 2,288.00 VAT Included

Inverter Input Voltage
- 9.5-17V
Inverter Output Voltage
- 230V
Inverter Output Power (VA)
- 5000VA - 4000W
Charger Input Voltage
- 187-265V
Charger Output Voltage
- 14.4V
Charger Output Current
- 220A
Transfer Switch (Amps)
- 100A
IP Rating
- IP21
Bluetooth
Brand
Warranty

This combination does not exist.

Add to cart

Found it cheaper? We offer a Nationwide Price Promise on all products.

Inverter Input Voltage: 9.5-17V

Inverter Output Voltage: 230V

Inverter Output Power (VA): 5000VA - 4000W

Charger Input Voltage: 187-265V

Charger Output Voltage: 14.4V

Charger Output Current: 220A

Transfer Switch (Amps): 100A

IP Rating: IP21

Bluetooth: No

Brand: Victron Energy B.V.

Warranty: 5 Years

Terms and Conditions

Internal Reference: 105372

The Victron Quattro 12/5000/220-100/100 230V VE.Bus is a multifunctional inverter/charger designed for demanding applications, offering exceptional flexibility and performance. It can accept two AC inputs—such as shore-side power and a generator—automatically switching to the active source, ensuring uninterrupted power supply. The Quattro features a pure sine wave inverter, adaptive charging, and hybrid PowerAssist technology to prevent overloads and boost the output of limited AC sources using power from the battery.

It also supports parallel operation, allowing up to six units to be connected for higher power output, as well as three-phase or split-phase operation. The Quattro can be monitored and controlled locally or remotely using the VRM app, providing users with full control from anywhere in the world. With a compact design, easy installation, and robust functionality, this unit is perfect for both off-grid and grid-connected energy systems.

IMPORTANT NOTICE:

Please note that the images of the product shown above are for illustrative purposes only.

While we strive to provide accurate representations, there might be slight differences between the product image and the actual product you receive. These variations could be due to lighting, individual screen settings, product enhancements, or minor design updates from the manufacturer.

We assure you that any discrepancies are minimal and will not affect the overall quality and functionality of the product.

If you have any questions or concerns, please feel free to contact our customer support team for further assistance at support@batsol.co.uk or phone us at 01752 656270.

At Batteries and Solar, your satisfaction is our top priority, and we are committed to providing the best shopping experience for you.

Thank you for choosing Batteries and Solar for your purchase.

Features of the Quattro 12/5000-220-100

Two AC Inputs & two AC Outputs

The Quattro can be connected to two independent AC sources, for example shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.

Unique PowerAssist feature

The Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

Virtually unlimited power thanks to parallel operation

Up to 6 Quattros can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.

Remote Monitoring and Control

When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Quattro and system or systems’ locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Quattro to auto starting a backupgenerator and more…

Brand	Victron Energy
Manufacturer Part Number	QUA125020000
GTIN	8719076024118
Voltage	12V
Cont. Output Power at 25°C	5000VA
Peak Power	10000W
Output AC Voltage	230V
Transfer Switch	Yes
Charge Current House Battery	220A
Charge Current Starter Battery	4A
Protection Category	IP21
Efficiency	94%
Bluetooth Compatible	No
Dimensions	H470 x W350 x D280mm
Weight	34Kg
Warranty	5 Years
Country of Manufacture	India

Datasheet
