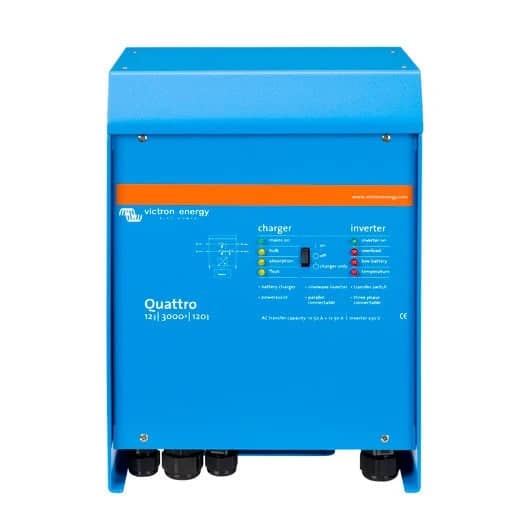

Victron Energy Quattro 12/3000/120-50/50 230V VE.Bus QUA123020010

https://www.batteriesandsolar.co.uk/web/image/product.template/263128/image_1920?unique=22e249e

The Victron Quattro 12/3000/120-50/50 230V VE.Bus (Part number QUA123020010) is a combined inverter and charger designed for demanding power systems. With dual AC inputs, adaptive charging, and PowerAssist technology, it offers reliable, uninterrupted power supply for off-grid, marine, and industrial applications. It is capable of handling up to 6 units in parallel for virtually unlimited power output.

£ 1,762.56 1762.56 GBP £ 1,762.56 VAT Included

£ 1,468.80 VAT Included

  • Inverter Input Voltage
  • Inverter Output Voltage
  • Inverter Output Power (VA)
  • Charger Input Voltage
  • Charger Output Voltage
  • Charger Output Current
  • Transfer Switch (Amps)
  • ​IP Rating
  • ​Bluetooth
  • Brand
  • ​Warranty

This combination does not exist.

Found it cheaper? We offer a Nationwide Price Promise on all products.

Contact Us
Inverter Input Voltage: 9.5-17V
Inverter Output Voltage: 230V
Inverter Output Power (VA): 3000VA - 2400W
Charger Input Voltage: 187-265V
Charger Output Voltage: 14.4V
Charger Output Current: 120A
Transfer Switch (Amps): 2 X 50A
​IP Rating: IP21
​Bluetooth: No
Brand: Victron Energy B.V.
​Warranty: 5 Years

Terms and Conditions

Internal Reference: 105361

The Victron Quattro 12/3000/120-50/50 is an advanced 12V inverter-charger capable of delivering 3000VA continuous output and a 6000W peak power. Designed for versatility, it features two AC inputs (for example, shore power and a generator), automatically switching between the two to maintain an uninterrupted power supply. The unique PowerAssist feature helps prevent overload by reducing battery charging when necessary, and further boosts the output from a generator or shore power supply when required.

This model allows for parallel operation—up to six units can be connected to increase the total power output, and three-phase or split-phase operation is also supported. When paired with a Victron GX device, such as the Cerbo GX, it offers remote monitoring and control via the VRM app or the VRM portal.

The Victron Quattro is designed to provide seamless power transfer, ensuring no break in service during grid failure, with less than 20 milliseconds of transition time. The second AC output allows for connecting non-essential loads like air conditioning or water heaters, which won’t drain the battery.

With an IP21 protection category, the Quattro is built for robust performance in a variety of environments, while maintaining a high level of efficiency (93%) and a 5-year warranty.

IMPORTANT NOTICE:

Please note that the images of the product shown above are for illustrative purposes only.

While we strive to provide accurate representations, there might be slight differences between the product image and the actual product you receive. These variations could be due to lighting, individual screen settings, product enhancements, or minor design updates from the manufacturer.

We assure you that any discrepancies are minimal and will not affect the overall quality and functionality of the product.

If you have any questions or concerns, please feel free to contact our customer support team for further assistance at support@batsol.co.uk or phone us at 01752 656270.

At Batteries and Solar, your satisfaction is our top priority, and we are committed to providing the best shopping experience for you.

Thank you for choosing Batteries and Solar for your purchase.

Features of the Quattro 12/3000-120-50

Two AC Inputs & two AC Outputs

The Quattro can be connected to two independent AC sources, for example shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.

Unique PowerAssist feature

The Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

Virtually unlimited power thanks to parallel operation

Up to 6 Quattros can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.

Remote Monitoring and Control

When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Quattro and system or systems’ locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Quattro to auto starting a backupgenerator and more…

Brand

Victron Energy
Manufacturer Part Number

QUA123020010
GTIN

8719076024101
Voltage

12V
Cont. Output Power at 25°C

3000VA
Peak Power

6000W
Output AC Voltage

230V
Transfer Switch

Yes
Charge Current House Battery

120A
Charge Current Starter Battery

4A
Protection Category

IP21
Efficiency

93%
Bluetooth Compatible

No
Dimensions

H362 x W258 x D218mm
Weight

19Kg
Warranty

5 Years
Country of Manufacture

India

Datasheet
