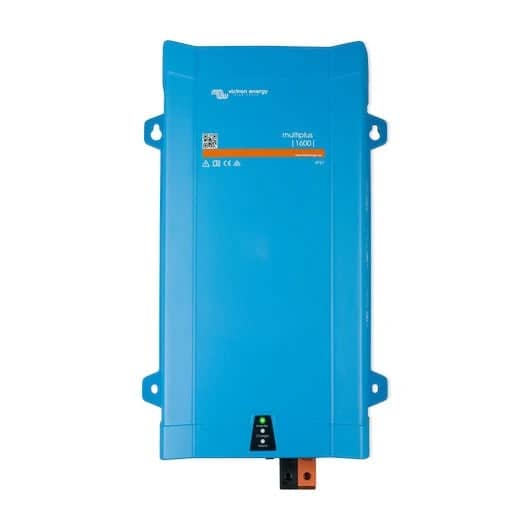

Victron Energy MultiPlus 24/1600/40-16 230V VE.Bus PMP242160000

The Victron Energy MultiPlus 24/1600 Inverter Charger is a high-performance model designed to replace the MultiPlus Compact range. This powerful unit offers a true sine wave inverter, advanced adaptive battery charging technology, and a high-speed AC transfer switch, all packaged in a compact and efficient enclosure.

£ 643.20 643.2 GBP £ 643.20 VAT Included

£ 536.00 VAT Included

Inverter Input Voltage
- 19-33V
Inverter Output Voltage
- 230V
Inverter Output Power (VA)
- 1600VA - 1300W
Charger Input Voltage
- 187-265V
Charger Output Voltage
- 28.8V
Charger Output Current
- 40A
Transfer Switch (Amps)
- 16A
IP Rating
- IP21
Bluetooth
Brand
Warranty

This combination does not exist.

Add to cart

Found it cheaper? We offer a Nationwide Price Promise on all products.

Inverter Input Voltage: 19-33V

Inverter Output Voltage: 230V

Inverter Output Power (VA): 1600VA - 1300W

Charger Input Voltage: 187-265V

Charger Output Voltage: 28.8V

Charger Output Current: 40A

Transfer Switch (Amps): 16A

IP Rating: IP21

Bluetooth: No

Brand: Victron Energy B.V.

Warranty: 5 Years

Terms and Conditions

Internal Reference: 105345

The Victron MultiPlus 24/1600 ensures uninterrupted AC power through its UPS function. In the event of a grid failure or disconnection of shore or generator power, the inverter automatically activates, supplying power to the connected devices in less than 20 milliseconds. This rapid transfer ensures continuous operation of sensitive electronics like computers and medical devices.

The inverter can be monitored and controlled remotely through the VRM app and VRM portal, providing the flexibility to adjust system settings and check performance anywhere in the world. Additionally, it offers parallel operation, enabling up to six units to work together for higher power output, and three-phase configuration with three units, ideal for larger installations.

The PowerAssist technology optimizes energy use by supplementing power from the battery when the shore or generator source is insufficient, and automatically recharging the battery once the load reduces.

IMPORTANT NOTICE:

Please note that the images of the product shown above are for illustrative purposes only.

While we strive to provide accurate representations, there might be slight differences between the product image and the actual product you receive. These variations could be due to lighting, individual screen settings, product enhancements, or minor design updates from the manufacturer.

We assure you that any discrepancies are minimal and will not affect the overall quality and functionality of the product.

If you have any questions or concerns, please feel free to contact our customer support team for further assistance at support@batsol.co.uk or phone us at 01752 656270.

At Batteries and Solar, your satisfaction is our top priority, and we are committed to providing the best shopping experience for you.

Thank you for choosing Batteries and Solar for your purchase.

Features of the MultiPlus 24/1600

Uninterrupted AC power (UPS function)

In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

Remote Monitoring and Control

When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems’ locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backupgenerator and more…”

Parallel Operation and Three Phase Capability

Up to six Multis can operate in parallel to achieve higher power output.

In addition to parallel connection, three units can be configured for three-phase output

PowerAssist – Boosting the Capacity of Shore or Generator Power

This feature takes the principle of PowerControl to a further dimension. It allows the MultiPlus to supplement the capacity of the alternative source. Where peak power is so often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery.

Brand	Victron Energy
Manufacturer Part Number	PMP242160000
GTIN	8719076044987
Voltage	24V
Cont. Output Power at 25°C	1600VA
Peak Power	2800W
Output AC Voltage	230V
Transfer Switch	16A
Protection Category	IP21
Charge Current House Battery	40A
Charge Current Starter Battery	1A
Efficiency	94%
Bluetooth Compatible	No
Dimensions	H470 x W265 x D120mm
Weight	10.2Kg
Warranty	5 Years
Country of Manufacture	India

Datasheet

Product Manual
