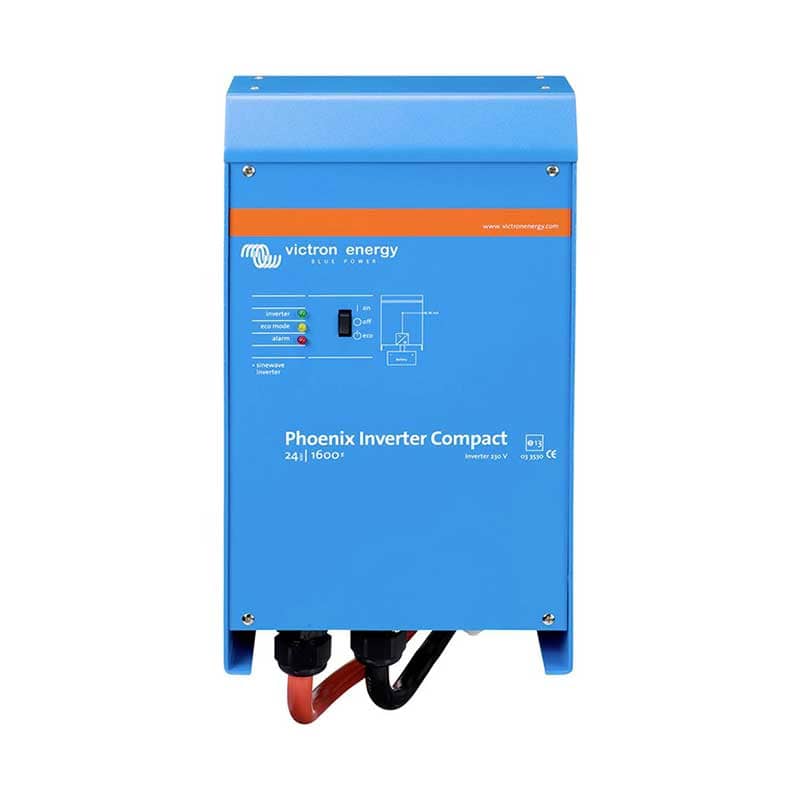

Victron Energy Phoenix Inverter Compact 24/1600 230V VE.Bus CIN241620000

The Victron Phoenix Inverter Compact 24/1600 230V VE.Bus is a 24V DC to 230V AC inverter, delivering high efficiency and true sine wave power suitable for a wide range of applications. It’s ideal for professional duty and designed with SinusMax technology for superior performance, extra start-up power, and the ability to connect in parallel for increased output.

£ 509.76 509.76 GBP £ 509.76 VAT Included

£ 424.80 VAT Included

This combination does not exist.

Add to cart

Found it cheaper? We offer a Nationwide Price Promise on all products.

Terms and Conditions

Internal Reference: 105157

The Victron Phoenix Inverter Compact 24/1600 230V VE.Bus provides 24V DC to 230V AC power with a true sine wave output, ensuring stable and clean electricity for sensitive equipment. Built for professional use, this inverter utilizes SinusMax technology for optimized efficiency and superior performance, making it suitable for a wide variety of applications.

The inverter's extra start-up power allows it to power difficult loads such as refrigeration compressors, electric motors, and other appliances that require a higher power surge on start-up.

Additionally, the parallel and 3-phase operation capability allows up to 6 units to be connected in parallel to achieve higher power output. This makes it highly flexible and scalable for more demanding applications, with the potential to reach up to 24kW / 30kVA with six 24/5000 units.

This inverter also features a computer interface through the RS-485 port, which allows users to customize settings via the VEConfigure software. Users can adjust parameters such as output voltage, frequency, over/under voltage settings, and program the relay for various tasks such as signaling alarms or starting a generator.

IMPORTANT NOTICE:

Please note that the images of the product shown above are for illustrative purposes only.

While we strive to provide accurate representations, there might be slight differences between the product image and the actual product you receive. These variations could be due to lighting, individual screen settings, product enhancements, or minor design updates from the manufacturer.

We assure you that any discrepancies are minimal and will not affect the overall quality and functionality of the product.

If you have any questions or concerns, please feel free to contact our customer support team for further assistance at support@batsol.co.uk or phone us at 01752 656270.

At Batteries and Solar, your satisfaction is our top priority, and we are committed to providing the best shopping experience for you.

Thank you for choosing Batteries and Solar for your purchase.

Features

SinusMax – Superior engineering

Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load.

Extra start-up power

A unique feature of the SinusMax technology is very high start-up power. Conventional high frequency technology does not offer such extreme performance. Phoenix Inverters, however, are well suited to power up difficult loads such as refrigeration compressors, electric motors and similar appliances.

Virtually unlimited power thanks to parallel and 3-phase operation capability

Up to 6 units inverters can operate in parallel to achieve higher power output. Six 24/5000 units, for example, will provide 24kW / 30kVA output power. Operation in 3-phase configuration is also possible.

To transfer the load to another AC source: the automatic transfer switch

If an automatic transfer switch is required we recommend using the MultiPlus inverter/charger instead. The switch is included in these products and the charger function of the MultiPlus can be disabled. Computers and other electronic equipment will continue to operate without disruption because the MultiPlus features a very short switchover time (less than 20 milliseconds).

Computer interface

All models have a RS-485 port. All you need to connect to your PC is our MK3-USB VE.Bus to USB interface (see under accessories). Together with our VEConfigure software, which can be downloaded free of charge from our website, all parameters of the inverters can be customized. This includes output voltage and frequency, over and under voltage settings and programming the relay. This relay can for example be used to signal several alarm conditions, or to start a generator. The inverters can also be connected to VENet, the new power control network of Victron Energy, or to other computerized monitoring and control systems.

Brand	Victron Energy
Manufacturer Part Number	CIN241620000
Voltage	24
VA	1600
Peak Power (W)	3000
Max Efficiency	94%
Programmable Relay	Yes
IP Rating	IP21
Dimensions (Including Terminals)	H375 x W214 x D110mm
Weight (kg)	10
Warranty	5 Years
Country of Manufacture	China

Datasheet
