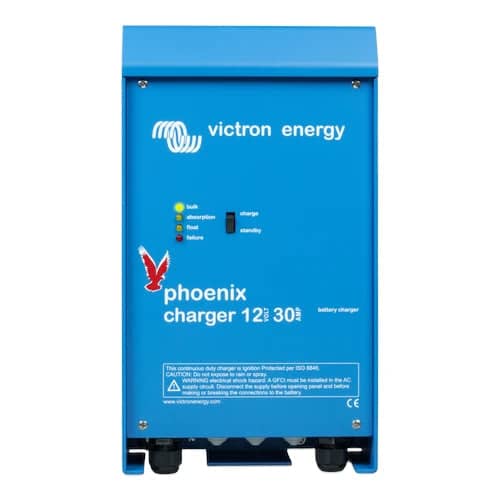

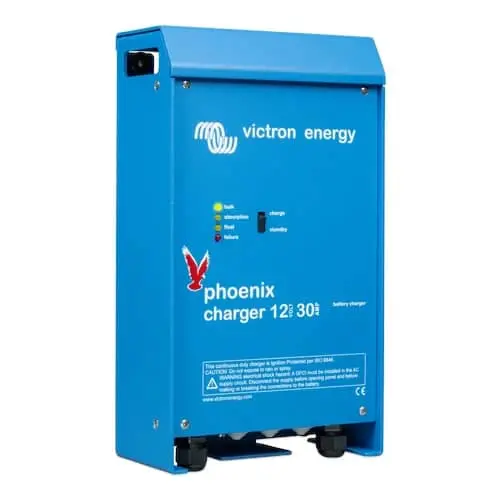

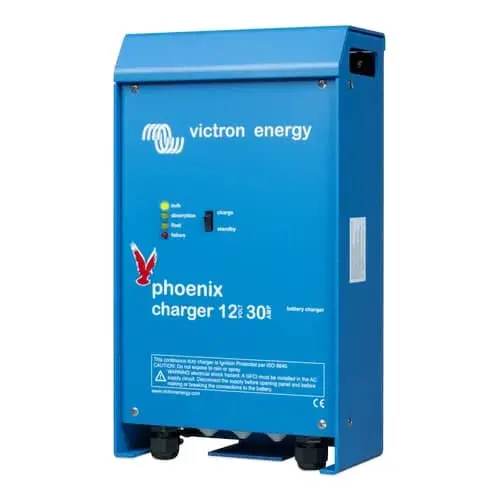

Victron Energy Phoenix Charger 12/30 (2+1) 120-240V PCH012030001

https://www.batteriesandsolar.co.uk/web/image/product.template/262833/image_1920?unique=7479728

The Victron Energy Phoenix Charger 12/30 is a high-performance, adaptive 4-stage battery charger designed for 12V battery systems. It is ideal for applications where precise charging and battery longevity are crucial, such as in marine, RV, and off-grid systems.

£ 431.04 431.04 GBP £ 431.04 VAT Included

£ 359.20 VAT Included

  • 4 Charger Input Voltage
  • 5 Charger Output Voltage
  • 6 Charger Output Current
  • Number of Outputs
  • Battery Compatibility
  • ​8 IP Rating
  • ​9 Bluetooth
  • 10 Brand
  • ​11 Warranty

This combination does not exist.

Found it cheaper? We offer a Nationwide Price Promise on all products.

Contact Us
4 Charger Input Voltage: 90-265V
5 Charger Output Voltage: 12V
6 Charger Output Current: 30A
Number of Outputs: 3
​8 IP Rating: IP21
​9 Bluetooth: No
10 Brand: Victron Energy B.V.
​11 Warranty: 5 Years

Terms and Conditions

Internal Reference: 104999

The Victron Energy Phoenix Charger 12/30 has adaptive 4-stage charge characteristic: bulk – absorption – float – storage. Two full rated outputs and one 4 Amp output. Universal input 90-265V, 50/60Hz. The Phoenix charger features a microprocessor controlled adaptive battery management system that can be pre-set to suit different types of batteries. The adaptive feature will automatically optimise the charge process relative to the way the battery is being used.

IMPORTANT NOTICE:

Please note that the images of the product shown above are for illustrative purposes only.

While we strive to provide accurate representations, there might be slight differences between the product image and the actual product you receive. These variations could be due to lighting, individual screen settings, product enhancements, or minor design updates from the manufacturer.

We assure you that any discrepancies are minimal and will not affect the overall quality and functionality of the product.

If you have any questions or concerns, please feel free to contact our customer support team for further assistance at support@batsol.co.uk or phone us at 01752 656270.

At Batteries and Solar, your satisfaction is our top priority, and we are committed to providing the best shopping experience for you.

Thank you for choosing Batteries and Solar for your purchase.

Features of the Phoenix Charger 12/30

The right amount of charge: variable absorption time

When only shallow discharges occur (a yacht connected to shore power for example) the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged.

To increase battery life: temperature compensation

Every Phoenix Charger comes with a battery temperature sensor. When connected, charge voltage will automatically decrease with increasing battery temperature. This feature is especially recommended for sealed batteries and/or when important fluctuations of battery temperature are expected.

Battery voltage sense

In order to compensate for voltage loss due to cable resistance, Phoenix Chargers are provided with a voltage sense facility so that the battery always receives the correct charge voltage.

Computer interface

Every Phoenix Charger is ready to communicate with a computer through its RS-485 data port. Together with the VEConfigure software and the data link MK2-USB, all parameters of the chargers can be customised.

Brand

Victron Energy
Manufacturer Part Number

PCH012030001
GTIN

8719076023258
Voltage

12V
Charge Current

30A
Input Voltage

90-265V
Number of Outputs

2+1
Protection Category

IP21
Bluetooth Enabled

No
Dimensions

H350 x W200 x D108mm
Weight

3.8Kg
Warranty

5 Years
Country of Manufacture

Malaysia

Data Sheet

Product Manual
