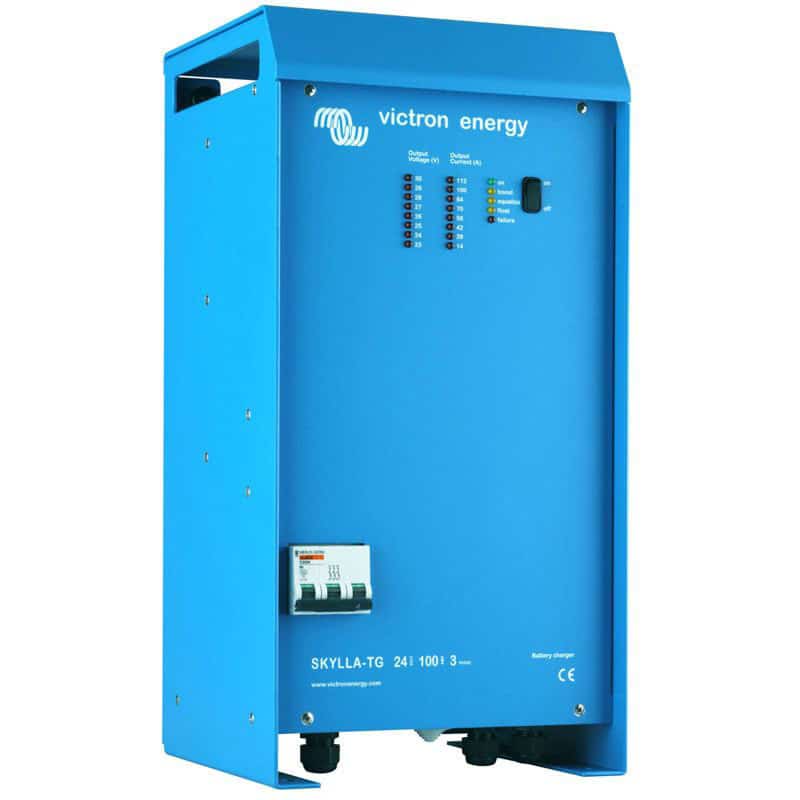

Victron Energy Skylla-TG 24/100(1+1) 3-Phase 400V STG024100300

This charger is engineered to provide precise, rapid charging while maintaining battery health, making it an excellent choice for critical environments that demand robust and dependable power solutions.

£ 1,973.76 1973.76 GBP £ 1,973.76 VAT Included

£ 1,644.80 VAT Included

4 Charger Input Voltage
- 320-450V
5 Charger Output Voltage
- 24V
6 Charger Output Current
- 100A
Number of Outputs
Battery Compatibility
- Flooded
- AGM
- Gel
8 IP Rating
9 Bluetooth
10 Brand
11 Warranty

This combination does not exist.

Add to cart

Found it cheaper? We offer a Nationwide Price Promise on all products.

4 Charger Input Voltage: 320-450V

5 Charger Output Voltage: 24V

6 Charger Output Current: 100A

Number of Outputs: 2

8 IP Rating: IP21

9 Bluetooth: No

10 Brand: Victron Energy B.V.

11 Warranty: 5 Years

Terms and Conditions

Internal Reference: 104994

The Victron Energy Skylla-TG 24/100 has one full rated output and one 4 Amp output. Charge voltage can be precisely adjusted to suit any battery system. The input for the charger is 230V at 50/60HZ. Charge voltage can be measured directly on the battery terminals in order to compensate for voltage loss due to cable resistance. An external sensor allows measuring battery temperature and compensating charge voltage accordingly.

IMPORTANT NOTICE:

Please note that the images of the product shown above are for illustrative purposes only.

While we strive to provide accurate representations, there might be slight differences between the product image and the actual product you receive. These variations could be due to lighting, individual screen settings, product enhancements, or minor design updates from the manufacturer.

We assure you that any discrepancies are minimal and will not affect the overall quality and functionality of the product.

If you have any questions or concerns, please feel free to contact our customer support team for further assistance at support@batsol.co.uk or phone us at 01752 656270.

At Batteries and Solar, your satisfaction is our top priority, and we are committed to providing the best shopping experience for you.

Thank you for choosing Batteries and Solar for your purchase.

Features of the Skylla-TG 24/100

Perfect chargers for any type of battery

Charge voltage can be precisely adjusted to suit any sealed or unsealed battery system. In particular, sealed maintenance free batteries must be charged correctly in order to ensure a long service life. Overvoltage will result in excessive gassing and venting of a sealed battery. The battery will dry out and fail.

Controlled charging

Every TG Charger has a microprocessor, which accurately controls the charging in three steps. The charging process takes place in accordance with the IUoUo characteristic and charges more rapidly than other processes.

Use of TG Chargers as a power supply

As a result of the perfectly stabilized output voltage, a TG Charger can be used as a power supply if batteries or large buffer capacitors are not available.

To increase battery life: temperature compensation

Every Skylla-TG 24/100 Charger comes with a battery temperature sensor. When connected, charge voltage will automatically decrease with increasing battery temperature. This feature is especially recommended for sealed batteries which otherwise might be overcharged and dry out due to venting.

Battery voltage sense

In order to compensate for voltage loss due to cable resistance, TG Chargers are provided with a voltage sense facility so that the battery always receives the correct charge voltage.

Brand	Victron Energy
Manufacturer Part Number	STG024100300
GTIN	8719076026686
Voltage	24V
Charge Current	100A
Input Voltage	120/230V
Number of Outputs	1+1
Protection Category	IP21
Bluetooth Enabled	No
Dimensions	H515 x W260 x D265mm
Weight	23Kg
Warranty	5 Years
Country of Manufacture	Malaysia

Datasheet

Product Manual
