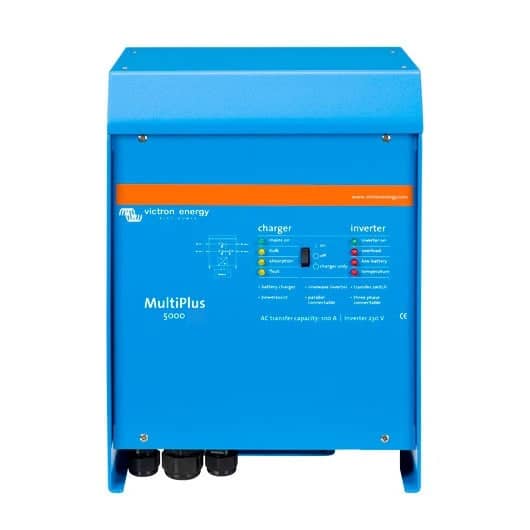

Victron Energy MultiPlus 24/5000/120-100 230V VE.Bus PMP245021010

The Victron MultiPlus 24/5000/120-100 is a high-capacity inverter charger designed for demanding applications, offering a combination of advanced features to ensure reliable power management and flexibility. With true sine wave output, adaptive charging, and hybrid PowerAssist technology, this unit provides an efficient and scalable power solution for large off-grid systems, marine vessels, and backup applications.

£ 1,930.56 1930.56 GBP £ 1,930.56 VAT Included

£ 1,608.80 VAT Included

Inverter Input Voltage
- 19-33V
Inverter Output Voltage
- 120V
Inverter Output Power (VA)
- 5000VA - 4000W
Charger Input Voltage
- 95-140V
Charger Output Voltage
- 28.8V
Charger Output Current
- 120A
Transfer Switch (Amps)
- 100A
IP Rating
- IP21
Bluetooth
Brand
Warranty

This combination does not exist.

Add to cart

Found it cheaper? We offer a Nationwide Price Promise on all products.

Inverter Input Voltage: 19-33V

Inverter Output Voltage: 120V

Inverter Output Power (VA): 5000VA - 4000W

Charger Input Voltage: 95-140V

Charger Output Voltage: 28.8V

Charger Output Current: 120A

Transfer Switch (Amps): 100A

IP Rating: IP21

Bluetooth: No

Brand: Victron Energy B.V.

Warranty: 5 Years

Terms and Conditions

Internal Reference: 103135

The Victron MultiPlus 24/5000/120-100 is a robust and versatile solution for those needing reliable power, whether in off-grid, marine, or backup power applications. With its PowerAssist feature, this model is capable of preventing overloads while still providing uninterrupted power during grid failures. Its ability to scale up power with parallel operation and integrate into three-phase setups makes it ideal for large and demanding systems. The remote monitoring and control features offer ultimate convenience, ensuring peace of mind and ease of use no matter where you are.

If you need a high-power, efficient, and flexible inverter charger, the Victron MultiPlus 24/5000/120-100 is the perfect solution.

Order now and secure reliable, efficient power for your system with Victron Energy!

IMPORTANT NOTICE:

Please note that the images of the product shown above are for illustrative purposes only.

While we strive to provide accurate representations, there might be slight differences between the product image and the actual product you receive. These variations could be due to lighting, individual screen settings, product enhancements, or minor design updates from the manufacturer.

We assure you that any discrepancies are minimal and will not affect the overall quality and functionality of the product.

If you have any questions or concerns, please feel free to contact our customer support team for further assistance at support@batsol.co.uk or phone us at 01752 656270.

At Batteries and Solar, your satisfaction is our top priority, and we are committed to providing the best shopping experience for you.

Thank you for choosing Batteries and Solar for your purchase.

Features of the MultiPlus 24/5000/120-100

Unique PowerAssist feature

The MultiPlus will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

Uninterrupted AC power (UPS function)

In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

Virtually unlimited power thanks to parallel operation

Up to 6 Multis can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.

Remote Monitoring and Control

When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems’ locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backupgenerator and more…

Brand	Victron Energy
Manufacturer Part Number	PMP245021010
GTIN	8719076024033
Voltage	24V
Cont. Output Power at 25°C	5000VA
Peak Power	10000W
Output AC Voltage	230V
Transfer Switch	100A
Charge Current House Battery	120A
Charge Current Starter Battery	4A
Protection Category	IP21
Efficiency	94%
Bluetooth Compatible	No
Dimensions	H444 x W328 x D240mm
Weight	30Kg
Warranty	5 Years
Country of Manufacture	India

Data Sheet

Product Manual
